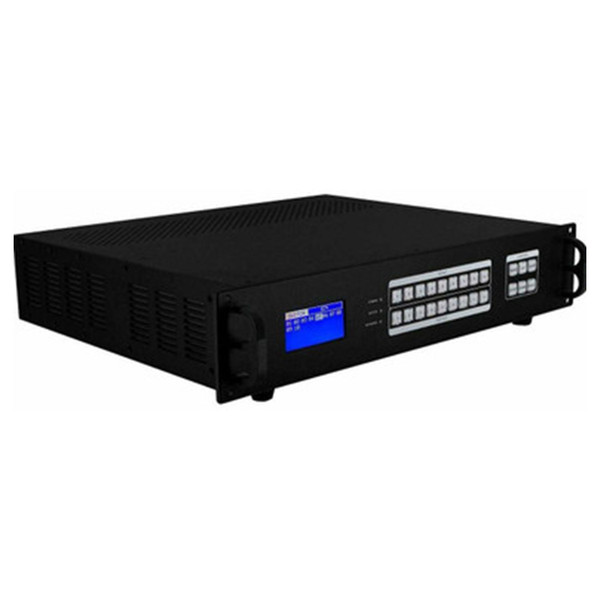

HDTV Supplys WolfPack 1080p 4x4 HDMI Matrix Switcher with Video Wall is a preconfigured integrated HDMI video and HDMI audio modular HDMI matrix Switcher. The 9x9 chassis back plane allows HDMI technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs. The internal Video Wall processor allows you to create custom video wall layouts via our easy to use WEB GUI.
The core of the 4x4 HDMI Matrix Switcher with Video Wall consists of an 9x9 Modular Matrix chassis and its highly configurable backplane that supports 9 input cards and 9 output cards. The 4x4 HDMI Matrix Switcher with Video Wall is also 1080p compliant.
You can control the WolfPack™ 4x4 HDMI Matrix Switcher with Video Wall via front buttons, WEB GUI control, or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android app. The HDMI input card has built-in 8-pin DIP Switch for resolution adjustment and supports a 3.5mm audio embedded input.
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.
What sets our WolfPack™ 1080p 4x4 HDMI Matrix Switcher with Video Wall apart from others:
- Built-in Video Wall Processor with WEB GUI Control
- 1080p cards for the best picture
- Up/Down HDMI Card Scaling
- HDCP compliant
- 40 - Preset scenes that can be Saved and Recalled
- Closed Caption (CC) Pass-through
- Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons
- Fast switching speed
- No latency
- 2-Year WolfPackCare™ Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
WolfPack™ 1080p 4x4 HDMI Matrix Switcher with Video Wall Configuration:
- 1 - 9-card in and 9 card out 1080p card cage
- 4 - 1-port 1080p HDMI input cards = 4-HDMI inputs
- 4 - 1-port 1080p HDMI output cards = 4-HDMI outputs
- 5 - Input slots for future expansion to 9-total inputs
- 5 - Output slot for future expansion to 9-total outputs
The WolfPack 1080p 4x4 HDMI Matrix Switcher with Video Wall manages HDMI input signals for the inputs and outputs. This 1080p 4x4 HDMI Matrix Switcher with Video Wall supports long haul transmissions, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 4x4 HDMI Matrix Switcher with Video Wall also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
1080p 4x4 HDMI Matrix Switcher with Video Wall Feature:
- Chassis size: 9 input and 9 outputs cards
- Input Cards Supported:
- 4 - 1080p female HDMI single port cards = 4 - HDMI inputs
- Output Cards:
- 4 - 1080p female HDMI single port cards = 4 - HDMI outputs
- Built-in Video Wall Processor with WEB GUI Control
- Input card has built-in 8-pin DIP Switch for resolution adjustment
- Input card supports 3.5mm audio embedded
- Input HDMI cable distance: Up to ~12 feet with an AWG24 HDMI 1.4 high speed cable
- Input HDMI cable distance: Up to ~50 feet with an AWG24 HDMI 1.4 high speed cable
- Flexible card type design supporting 9 input cards and 9 output cards
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled (WEB GUI) via built-in web server and LAN
- RS-232 Serial interface for remote control
- Supports fast switching, no black/ blue/ split screen while switching
- Supports resolution exchanges with several resolutions can be chosen and used
- Hot-pluggable
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control (no remote control)
- 2U Rack-mountable
EDID Explained: The 1080p 4x4 HDMI Matrix Switcher with Video Wall EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
Why not buy this 1080p 4x4 HDMI Matrix Switcher with a Video Wall Processor today?
The Seamless 4x4 HDMI Matrix Switcher with Video Wall Processor allows switching between inputs via a clean video cut & frame-to-frame switching without glitches. The WolfPacks HDMI Matrix Switcher advanced processor allows it to process live signals simultaneously which means it can seamlessly & instantly switch (~100ms or 0.1 second) between HDMI inputs & outputs. Most non-seamless HDMI matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.
WolfPack 1080p 4x4 HDMI Matrix Switcher with Video Wall Specs:
- Modular Configuration: 9 inputs/9 outputs card cage
- Output cable distance: ~50 feet AWG24 HDMI 1.4 high speed cable
- Supported Input & Outputs Signals:
- HDMI and Display Port: up to 1080p 4x4 HDMI Matrix Switcher with Video Wall
- Control: Many including TCP/IP, RS232 and front buttons
- Power Supply: 100 to 240VAC, 50-60Hz
- Power Consumption: 50W 70W
- Operating Temperature: -10℃ to 50℃
- Storage Temperature: -25℃ to 55℃
Why not buy this 1080p 4x4 HDMI Matrix Switcher with Video Wall today?
User Manuals and Other Documents
Why not buy this 1080p 4x4 HDMI Matrix Switcher with a Video Wall Processor today?
Control
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:- Free iPad App (iOS)
- Free iPhone App (iOS)
- Free iPod App (iOS)
- Free Android Tablet App
- Free Android Phone App
- Free Samsung Galaxy Tablet App
- Free Samsung Galaxy Phone App
- Free Web GUI from any browser is standard
- Front panel push-buttons are standard
- Optional $100 7" Color Touch Screen on select models (Call)
- Dual RS232 ports are standard on select models
- Dual TCPIP ports are standard on select models
- DTVGame Sports Bar DirecTV™ Control System (Call)
- Allonis Sports Bar DirecTV™ Control System (Call)
- Free One-Way Control4 Drivers
- Optional $99 2-Way Control4 Drivers
- Optional $99 URC Drivers
- Optional $129 Crestron Drivers
- Optional $99 Elan Drivers
- Optional $99 RTI Drivers
- Optional Harmony Remote Control Codes for select models (Call)
Control Drivers
- Control4 Drivers
- Elan Drivers
- RTI Drivers
- URC Drivers
- Crestron Modules
- We Need AMX Drivers
- We Need Extron Drivers
- We Need Savant Drivers
DirecTV Controller
Apps
These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
- AMX™
- Control4™
- Creston™
- RTI™
- DTVGameControl™
- Elan g!™
- Media Switcher™
- OnControls™
- Savant™
- SimpleControl™
- SwitchItUp™
- SAVI Control™
- URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.
EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.
How to use the info:
END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
- Call us for a quote
- Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.
Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants
Why not buy this 1080p 4x4 HDMI Matrix Switcher with Video Wall today?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
Mix-n-Match combinations:
Non-HDCP source to a HDCP compliant TV
HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
Q: What are the dimensions of the chassis?
A: 9x9: 2U - 482x390x88mm - 18.97x15.35x3.46 inches (L/W/H)
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
Q: How is HDBaseT technology different than others?
A: Unlike other HD distribution technologies, HDBaseT is the only technology which enables CAT6/6/7 connectivity from 70 meters to 100 meters, depending upon the specific product, for uncompressed full HD multimedia content and up to 100 watts of charging power via a single cable. HDBaseT is optimized for video applications and can connect all HDBaseT enabled home entertainment devices. Also, HDBaseT technology has the capacity to deliver double the resolution available today to future 2K and 4K formats. Other existing solutions also require a specific cable and/or a new proprietary connector while HDBaseT utilizes the existing Ethernet infrastructure. These WolfPack HDBaseT matrix systems have with (POC) Power Over Ethernet so you don't need AC adapters.
HDMI HDbaseT Extender Helpful Tips & Recommendations:
- Keep cables away from any equipment with an electromagnetic wave, e.g., mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines, etc.
- CAT6/6 cables should not exceed 220 feet or (70m).
- Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
- Shielded CAT6/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).
Why not buy this 1080p 4x4 HDMI Matrix Switcher with Video Wall today?
HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.
If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at support@hdtvsupply.com
