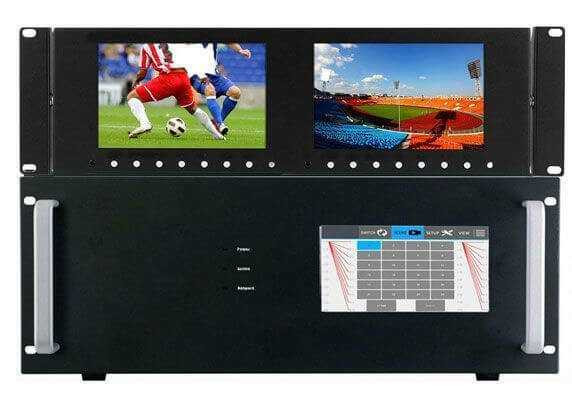

HDTV Supplys 4K WolfPackPro 4x16 HDMI Matrix Switcher w/Dual Monitors is a preconfigured integrated modular HDMI video & HDMI audio matrix switcher. The 18x18 chassis (4U) back plane allows HDMI technologies to be converted & switched eliminating external converters & it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination. The 4K WolfPackPro 4x16 HDMI Matrix Switcher is 4K at 30 Hz compliant and includes rack mount Dual 7" Color Monitors & a 7" Color Touchscreen for control as well as separate audio outs on both the HDMI in and out cards for connecting to your audio system.
The core of the 4K WolfPackPro 4x16 HDMI Matrix Switcher w/Dual Monitors consist of a 18x18 Modular Matrix chassis (4U) & its highly configurable WolfPackPro backplane that supports 18 input cards & 18 output cards. You can control the 4x16 HDMI Matrix Switcher via a 7" Color Touchscreen, Elan & 2-Way Control4 drivers, WEB GUI control, the dual RS-232 serial port & the supplied iOS/Android Apps. The matrix does not have IR nor a remote control. It comes with a free 7" Tablet.
The 4K WolfPackPro 4x16 HDMI Matrix Switcher manages HDMI input signals for the female HDMI inputs and female HDMI outputs for HDMI cabling. By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair.
WolfPackPro 4K 4x16 HDMI Matrix Switcher Configuration:
- 1 - 4K 18-card in & 18-card out card cage chassis (4U) with 7" Color Touchscreen Control
- 4 - 1-port 4K HDMI input cards with separate 3.5mm audio out
- 14 - 1-port 4K HDMI output cards with separate 3.5mm audio out
- 2 - 2-port 4K HDMI cards for the Dual Monitors w/o separate audio outs
- 1 - Rack Mount Dual 7" Color Monitors (3U)
- 2 - Free 3 foot HDMI cables for the 2-monitors
- 1 - Free 7" Amazon Fire Tablet
Reasons that sets our WolfPackPro™ HDMI Modular Matrix Switchers apart from others:
- 4K/30 for the best picture. 4X better than 1080p
- Includes Dual 7" Color Monitors (3U)
- Includes 7" Color Touchscreen for control
- Separate Audio Outs on both HDMI In/Out Cards
- 40 - Preset scenes that can be Saved and Recalled
- Optional Elan & 2-Way Control4 drivers
- HDBaseT HDMI to CATx extenders, not cheap H.264 with fuzzy compressed video
- Closed Caption (CC) Pass-through
- Control via an iPad App, Android App, Web Browser (WEB GUI), Dual RS232 & 7" Color Touchscreen
- 2-Power Supplys w/automatic switch-over if a problem occurs
- 2-Year WolfPackPro Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
- Optional low cost Video wall Processors
This 4K WolfPackPro 4x16 HDMI Matrix Switcher supports long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 4K WolfPackPro 4x16 HDMI Matrix Switcher also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc.
4K WolfPackPro 4x16 HDMI Matrix Switcher Features:
- Chassis size: 18 input & 18 outputs cards (4U)
- Input Cards Supported:
- 4 - 4K female HDMI single port cards = 4 - HDMI inputs with separate audio outs
- Output Cards:
- 14 - 4K female HDMI single port cards = 14 - HDMI outputs with separate audio outs
- 2 - 4K HDMI cards with 2-HDMI female outputs (without separate audio outs). One HDMI out goes to one monitor and the other is an HDMI output. Think of it as a 1x2 HDMI splitter made with a slide-in card.
- Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
- Output HDMI cable distance: ~35 feet AWG24 HDMI 2.0 high speed cables
- Flexible card type design supporting 18 input cards and 18 output cards
- Hot Swappable with easy plug n play
- Dual RS232 serial control port for using serial commands
- TCP/IP control via Ethernet
- Global presets to save and recall the function
- Advanced EDID management for rapid integration of sources and displays
- Front-panel push buttons for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for remote control
- Supports fast switching, no black/ blue/ split screen while switching
- Supports resolution exchanges with several resolutions can be chosen and used
- Uses a dual RS232 control system
- Rack-mountable
The heart of the 4K WolfPackPro 4x16 HDMI Matrix Switcher w/Dual Monitors is the WolfPackPro chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.
Why not buy this 4K WolfPackPro 4x16 HDMI Matrix Switcher w/Dual Monitors today?
Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply will seamlessly take over the matrices power needs.
Modular HDMI Matrix Switcher Specs:
- Modular chassis size: 18x18 = 18 inputs and 18 outputs
- Input cable distance: ~25 feet AWG22 HDMI 1.4 high speed cable
- Output cable distance: ~35 feet AWG22 HDMI 1.4 high speed cable
- Separate Audio Out on both HDMI In/Out Cards
- Supported Input & Outputs Signals:
- HDMI and Display Port: up to 4K at 30 Hz
- Control TCP/IP, Dual RS232 and front screen
- Power Supply 100 to 240VAC, 50-60Hz
- Power Consumption 50W 70W
- Operating Temperature -10℃ to 50℃
- Storage Temperature -25℃ to 55℃
Why not buy this 4K WolfPackPro 4x16 HDMI Matrix Switcher w/Dual Monitors today?
WolfPackPro Modular HDMI Matrix Switcher Comparison Spreadsheet
DO NOT USE EZ45 CAT6 CONNECTORS WITH HDBaseT PRODUCTS
EDID Operation for the HDBaseT Transmitter
EDID Learning Instruction for the Cards
SDI Card Specs
RS232 Commands in HEX and ASCII format
Why not buy this 4K WolfPackPro 4x16 HDMI Matrix Switcher w/Dual Monitors today?
Reasons To Buy an HDTV Supply WolfPackPro Product
Why not buy this 4K WolfPackPro 4x16 HDMI Matrix Switcher w/Dual Monitors today?
Control
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:- Free iPad App (iOS)
- Free iPhone App (iOS)
- Free iPod App (iOS)
- Free Android Tablet App
- Free Android Phone App
- Free Samsung Galaxy Tablet App
- Free Samsung Galaxy Phone App
- Free Web GUI from any browser is standard
- Front panel push-buttons are standard
- Optional $100 7" Color Touch Screen on select models (Call)
- Dual RS232 ports are standard on select models
- Dual TCPIP ports are standard on select models
- DTVGame Sports Bar DirecTV™ Control System (Call)
- Allonis Sports Bar DirecTV™ Control System (Call)
- Free One-Way Control4 Drivers
- Optional $99 2-Way Control4 Drivers
- Optional $99 URC Drivers
- Optional $129 Crestron Drivers
- Optional $99 Elan Drivers
- Optional $99 RTI Drivers
- Optional Harmony Remote Control Codes for select models (Call)
Control Drivers
- Control4 Drivers
- Elan Drivers
- RTI Drivers
- URC Drivers
- Crestron Modules
- We Need AMX Drivers
- We Need Extron Drivers
- We Need Savant Drivers
DirecTV Controller
Apps
These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
- AMX™
- Control4™
- Creston™
- RTI™
- DTVGameControl™
- Elan g!™
- Media Switcher™
- OnControls™
- Savant™
- SimpleControl™
- SwitchItUp™
- SAVI Control™
- URC Control™
EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.
How to use the info:
END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
- Call us for a quote
- Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants
Why not buy this 4K WolfPackPro 4x16 HDMI Matrix Switcher w/Dual Monitors today?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
- Mix-n-Match combinations:
- Non-HDCP source to a HDCP compliant TV
- HDCP source to a non-HDCP compliant TV
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
A: For the 2 power supply system on the card cage matrix, it's a redundant system. We can have two power supply system on at the same time (if one's down, it can hop to another, it guarantees the matrix won't shut down). It also can operate with just one power supply on and the other one is for back-up
Q: What are the dimensions of the chassis?
A: 18x18: 4U - 482x390x355mm(L/W/H) - 18.97x15.35x13.98 inches
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
