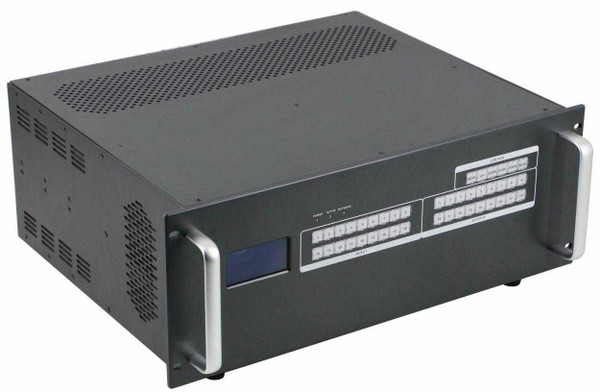

4K 4x16 HDMI Matrix HDBaseT Router with 16-HDBaseT Receivers
2:
Control via an iPad, Android, Web GUI, RS232 & Front Buttons
3:
18x18 Chassis Size with spare slots for field expansion
4:
Preconfigured with HDMI slide-in cards w/40 - Save & Recall Scenes
5:
Comes with 16-HDBaseT POE Receivers to 220 feet at 1080p
6:
Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
7:
2-Year WolfPackCare™ Advance Replace Warranty
Make a Fair Offer
Ask an Expert
WolfPack HDMI Switchers HDTV Supplys WolfPack 4K/30 4x16 HDMI Matrix HDBaseT Switcher is a pre-configured integrated HDMI video and HDMI audio modular HDMI matrix router. The 4x16 chassis back plane allows HDMI technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs. The core of the 4x16 HDMI Matrix HDBaseT Router consist of an 18x18 Modular Matrix chassis and its highly configurable backplane that supports 4 input cards and 16 HDBaseT output cards to 16-HDBaseT receivers that are supplied. The 4x16 HDMI Matrix HDBaseT Router is also 4K at 30 Hz compliant.

You can control the 4x16 HDMI Matrix HDBaseT Router via front buttons, WEB GUI control or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android app.

10 Reasons that sets our WolfPack™ HDMI Modular Matrix Switchers apart from others:

  1. 4K/30 HDMI cards for the best picture
  2. HDMI 1.4 and HDCP 1.4 compliant on all inputs and outputs
  3. Uses the best 4K/30 HDBaseT HDMI to CATx extenders with POC (Power Over Cable), not cheap H.264 with fuzzy compressed video
  4. Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons
  5. 40-Configuration Scene Saving Settings
  6. 2-Power Supplys w/automatic switch-over if a problem occurs
  7. 2-Year WolfPackCare™ Advance Replace Warranty
  8. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  9. Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
  10. Optional low cost Video wall Processors

WolfPack 4K 4x16 HDMI Matrix HDBaseT Router with 16-HDBaseT Receivers Configuration:

  • 1 - 18-card in and 18 card out 4K card cage
  • 4 - 1-port 4K HDMI input cards = 4-HDMI inputs
  • 16 - 1-port 4K HDMI HDBaseT output cards = 16-RJ45 outputs
  • 16 - HDMI HDBaseT receivers going to 220 feet at 1080p and 115 feet at 4K/30
  • 10 - Spare input slots for adding 10-more inputs
  • 2 - Spare output slots for adding 2-more outputs

By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn′t have to be sent to us for a repair.

The WolfPack 4x16 HDMI Matrix HDBaseT Router manages HDMI input signals for the inputs and HDBaseT CATx cabling for the output. This 4x16 HDMI Matrix HDBaseT Router support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 4x16 HDMI Matrix HDBaseT Router also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.

4K 4x16 HDMI Matrix HDBaseT Router Feature:

  • Chassis size: 18 input and 18 outputs cards
  • Input Cards Supported:
    • 4 - 4K female HDMI single port cards = 4 - HDMI inputs
  • Output Cards:
    • 16 - HDBaseT HDMI single port cards = 16 - RJ45 outputs
    • 16 - HDBaseT Receivers to support 220 feet at 1080p or 115 feet with CAT6/7 at 4K/30
  • Input HDMI cable distance: Up to ~12 feet with an AWG24 HDMI 1.4 high speed cable
  • Flexible card type design supporting 18 input cards and 18 output cards
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel LCD display for status feedback
  • Front-panel push buttons for local switching
  • IP controlled via built-in web server and LAN
  • RS-232 Serial interface for remote control
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Hot-pluggable
  • Uses a dual control system
  • Control via Web / RS232 and Front Buttons control (no remote control)
  • Rack-mountable

The heart of the 4x16 HDMI Matrix HDBaseT Router is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.

Free Android and iOS App: The IOS App for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.

For the Android App click the following link and download it. Go to Android App for control of this HDMI matrix switch.

EDID Explained: The 4x16 HDMI Matrix HDBaseT Routers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.

Why not buy this 4K 4x16 Mini-HDMI Matrix HDBaseT Router w/16-HDBaseT Receivers & iPad/ today?

HDTV Supplys implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CATx cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a church or auditorium, the speakers lips are always in synch with the video image on all the TVs and projectors 100's of feet away.

Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.

Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply will seamlessly take over the matrices power needs.

4K 4x16 Mini-HDMI Matrix HDBaseT Router w/16-HDBaseT Receivers & iPad/

  • Modular Configuration: 4 inputs/16 outputs
  • Input cable distance: ~12 feet with AWG24 HDMI 1.4 high speed cable
  • Supported Input & Outputs Signals:
    • HDMI and Display Port: up to 4K at 30 Hz 4:2:0
    • CATx: HDBaseT technology, 70/100m Extension (work with extenders)
  • Control: TCP/IP, RS232 and front buttons
  • Power Supply: 100 to 240VAC, 50-60Hz
  • Power Consumption: 50W 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: -25℃ to 55℃

Why not buy one of these 4x16 HDMI Matrix HDBaseT Router today?

WolfPack HDMI Switchers HDTV Supply created our unique line of WolfPack line of products which are born from a hungry, circling pack of high performance video and audio HDMI that surround our competition to devour them. The WolfPack family is sleek, unique & swift & even the smallest configuration wolf can adapt himself to many hostile environments.

The Wolfpack family can roam long distances even some up to 300 feet over HDBaseT trails and howl 4K whereas those who try to trap the WolfPack fails & runs away to the older devices.

You can only get this one-of-a-kind WolfPack product from HDTV Supply.

Reasons To Buy an HDTV Supply WolfPack Product:

  1. All WolfPack products have FREE HDTV Supply U.S. based Live Telephone Lifetime Tech support
  2. HDTV Supply has a dedicated TEXT support line at 805-409-0208 to support you
  3. HDTV Supply has a dedicated Product Manager for WolfPack products to assist with any special needs
  4. If there is a WolfPack firmware update for your product you will find it at our site
  5. Many times we will list lower refurbished WolfPack products at our site
  6. All WolfPack products are usually in stock and ship the same week day if the order comes in by 12PM PST
  7. You can buy WolfPack products from us with most any credit card, your Amazon account and PayPal
  8. HDTV Supply has many videos to show the features of WolfPack products
  9. You will find all WolfPack User Manuals and other manuals at our site
  10. From time-to-time HDTV Supply runs Factory Authorized sales on WolfPack products
  11. All WolfPack products bought from HDTV Supply are brand new and in unopened boxes.
  12. All WolfPack products bought from HDTV Supply are shipped in double carton boxing.
  13. All WolfPack products bought from HDTV Supply have full value shipping insurance
  14. All WolfPack products bought from HDTV Supply have a 30-day No-Hassle returns
  15. All WolfPack products bought from HDTV Supply can be shipped blind to your customer
  16. HDTV Supply has shipped >1,000 WolfPack products throughout the world
  17. HDTV Supply ships many WolfPack products from here in the U.S.
  18. HDTV Supply stocks extra WolfPack accessories in case you misplace your remote or other unit
  19. HDTV pride ourselves on confidentiality and any personal information that you may share with us is kept absolutely private.

Why not buy one of HDTV Supplys WolfPack products today?
