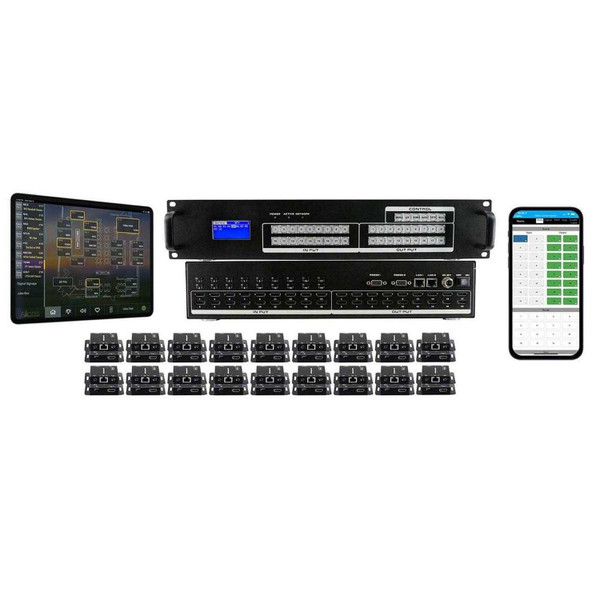

This 4K Sports Bar 18x18 HDMI Matrix Switcher over CAT6 with DirecTV Control can do the following with your iPad using only one iPad screen:
- Send any of up to 18-DirecTV™ receivers to up to 18-TVs, in any combination
- Change any of the 18-DirecTV™ TV channels
- See a Video Window of what DirecTV™ is playing on your iPad
- Put a single game on multiple TVs with one finger tap
- Floor Plan Based
HDTV Supplys WolfPack™ 18x18 HDMI Matrix Switch over CAT6 routes HDMI high definition audio/video from any of 18-HDMI sources to any of 18 displays over CAT6/7 cables. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination. This 4K 18x18 HDMI Matrix Switcher comes with our DVRpod system that with an iPad you can see, change and send any DirecTV channel to any of 18-TVs with the iPad showing your sports bar floor plan. All this shows on only one iPad page.
Our 4K Sports Bar 18x18 HDMI Matrix Switcher over CAT6 gives you thousands of input and output combinations. This 4K Sports Bar 18x18 HDMI Matrix Switcher over CAT6switches quickly without any flashing as its design is to avoid the flashing, as seen by other HDMI matrix switchers, it presents EDID which represents all the connected displays. This eliminates the source trying to adjust the resolution dynamically to fit the TVs which limits the flexibility but increases usability. When the HDMI signal progresses through this 4K Sports Bar 18x18 HDMI Matrix Switcher over CAT6 it is re-timed, level compensated, its phase error is corrected and any data jitter is eliminated so the output is a regenerated brand new perfect HDMI signal as when it was coming in from the source device.
What Sets This 4K Sports Bar 18x18 HDMI Matrix Switcher over CAT6 From Others:
- Change DirecTV channels w/iPad
- Switch Any Input To Any TV w/iPad
- Floor plan is shown on a iPad
- Extends 4K to 125' with a single CAT6 cable
- The chassis height is only 2U
- EDID Management on the WEB GUI
- 4K with HDMI/HDCP 1.4 Compliant
- No fan, completely silent operation so you can use nearby
- 10-Configuration Scene Saving Settings
- Supports 23-EDIDs with 18-output EDIDs & 15 internal EDIDs
- The matrix can switch every output to any HDMI inputs by (1) front panel push-in button, (2) IR remote control, (3) RS-232 control, and (4) Ethernet control
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital and DTS-HD Master Audio
- Using the RS232 OUT port, it is able to control other RS232 devices by sending the codes
4K 4K Sports Bar 18x18 HDMI Matrix Switcher over CAT6 Features:
- Inputs: 18 - HDMI female connectors
- Outputs: 18 - HDMI female connectors
- Includes 18-Separate HDMI Baluns with 18-TXs & 18-RXs
- Deep Color support 48/36/30/24-bit
- Supports LPCM 7.1CH, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI display to view any HDMI source at any time
- Supports 23 formats independent EDID, including 18-output EDID, 15 internal EDID.
- Supports RS-232, remote control, on-panel control and TCP/IP Control
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI display to view any HDMI source at any time
- Supports 7.1 channel digital audio
- Fast response time around 2 seconds for input switch
- Front-panel 2-line display for status feedback
- HDMI Rev 1.4 compliant.
- HDCP 1.4 protocol compliant.
- Supports deep color 30bit and 36bit.
- Support Blue-Ray 24/50/60/240 fs and above / HD-DVD / xvYCC.
- Digital audio format: DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD.
- Supports signal retiming.
- Supports input up to 15 feet AWG24 HDMI 1.4 standard cable length, output up to 50 feet AWG24 HDMI 1.4 (AWG24) cable length.
- Inputs can be switched with the IR remote control and front panel buttons.
- RS-232 remote control for PC control
- With a clean looking front panel display you can know the relationship between the inputs and outputs.
- No loss of quality
- Installs in minutes
- Includes a 12V DC power supply
This WolfPack 4K 18x18 HDMI Switcher can be used in Sports Bars, Restaurants, Casinos, Gentleman's Clubs, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Factories, Conference Rooms, Schools, Home Theaters & many other installations requiring HDMI matrix switching. You can easily control our 18x18 HDMI Matrix Switch via the front panel controls, RS232, a remote control, IR remote, APP, RS232/TCP/IP software & its WEB GUI browser control.
Why not buy this 4K Sports Bar 18x18 HDMI Matrix Switcher over CAT6 today?
This 18x18 HDMI Matrix Switch has 18-female HDMI inputs and 18-female HDMI outputs and come with 18-Separate HDMI Baluns (HDMI extenders with both TXs & RXs) that include 18-HDMI Transmitters and 18-HDMI Receivers. They feature:
- Sends an HDMI signal 150 feet w/one CAT6 cable
- POC (Power Over Cable) uses only 1-AC Adapter on the Transmitter
- User Adjustable EDID
- HDMI Loopout on the Transmitter
- Mounting plates included
The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays. In this case, a 720p stereo HDMI signal output would be probably the safest choice. Nevertheless, the user can force the matrix to learn the EDID of the lowest capable HDMI display among others to make sure all displays are capable to play the HDMI signals normally.
HDTV Supplys implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CATx cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a church or auditorium, the speakers lips are always in synch with the video image on all the TVs and projectors 100's of feet away.
HDTV Supply, Inc. is an HDBaseT.Org Approved Adopter of HDBaseT™ Products.
Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.
18x18 HDMI Switcher Specs:
- Type: True 18x18 matrix
- 2D and 3D compliant
- HDMI compliance: HDMI Deep Color & full 3D
- HDCP compliance: Yes
- Video support: 480i / 480p / 720p / 1080i / 4K60 and 4K 30
- Audio support: Surround sound (up to 7.1ch) or stereo digital audio
- Inputs: 32-HDMI / 1-RS-232 / 1-Ethernet
- Outputs: 32-HDMI
- HDMI Input selection Push-in button / IR remote control / RS-232 control / Ethernet control
- IR remote control Electro-optical characteristics: = 25 / Carrier frequency: 38kHz
- HDMI connector: Type A [19-pin female]
- RJ-45 connector: WE/SS 8P8C with 2 LED indicators
- RS-232 connector: DE-9 [9-pin D-sub female]
- Enclosure: Metal case
- Mounting: 1RU rack-mount with ears
- Power supply: 12V 5A DC
- Power consumption: 20 Watts [max]
- Operation temperature: 0~40C [32~104F]
- Storage temperature: -20~60C [-4~140F]
- Relative humidity: 20~90% RH [no condensation]
18x18 HDMI Switcher Package Contents:
- 1 - 18x18 HDMI Switcher
- 18 - HDMI Extenders
- 1 - DC 12V 5A
- 1 - IR Remote control
- 1 - User Menu
Why not buy this 18x18 HDMI Matrix Routing Switcher today?
Why not buy this Sports Bar 4K 18x18 HDMI Matrix Switcher over CAT6 Extenders today?
Reasons To Buy an HDTV Supply WolfPack Product
Why not buy this Sports Bar 4K 18x18 HDMI Matrix Switcher over CAT6 Extenders today?
Control
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:- Remote Keypad for WolfPack Matrix Systems
- Free iPad App (iOS)
- Free iPhone App (iOS)
- Free iPod App (iOS)
- Free Android Tablet App
- Free Android Phone App
- Free Samsung Galaxy Tablet App
- Free Samsung Galaxy Phone App
- Free Amazon Fire Tablet App
- Free Web GUI from any browser is standard
- Front panel push-buttons are standard
- Optional $100 7" Color Touch Screen on select models (Call)
- Dual RS232 ports are standard on select models
- Dual TCPIP ports are standard on select models
- DTVGame Sports Bar DirecTV™ Control System (Call)
- Allonis Sports Bar DirecTV™ Control System (Call)
- Free One-Way Control4 Drivers
- Optional $99 2-Way Control4 Drivers
- Optional $99 URC Drivers
- Optional $99 Elan Drivers
- Optional $129 Crestron Modules
- Optional $99 RTI Drivers
- Optional Harmony Remote Control Codes for select models (Call)
- Free Windows PC Control Software on select models (Call)
DirecTV Controller
Apps
These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
- AMX™
- Control4™
- Creston™
- RTI™
- DTVGameControl™
- Elan g!™
- Media Switcher™
- OnControls™
- Savant™
- SimpleControl™
- SwitchItUp™
- SAVI Control™
- URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.
EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be 8x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.
How to use the info:
END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
- Call us for a quote
- Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 User's Manual has and will work to control the matrix directly.
Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants
Why not buy this Sports Bar 4K 18x18 HDMI Matrix Switcher over CAT6 Extenders today?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
- Mix-n-Match combinations:
- Non-HDCP source to a HDCP compliant TV
- HDCP source to a non-HDCP compliant TV
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
Why not buy this Sports Bar 4K 18x18 HDMI Matrix Switcher over CAT6 Extenders today?
HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.
If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at support@hdtvsupply.com
