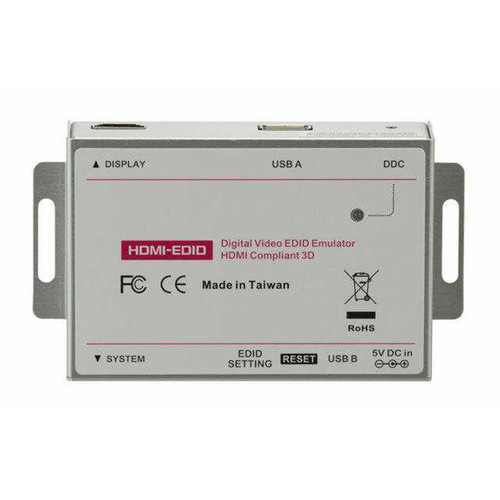

4K EDID Emulator with 16-Presets & PC Read/Write Software

WolfPack

$75.00
Part Number:
HDTVEE01H
UPC:
728350686223
Availability:
In Stock
1:
4K EDID Emulator w/16-Presets including 1080i
2:
Includes PC Software to Read & Write when needed
3:
Supports 4 different EDID functions of Read, Write, Emulate & Bypass

HDTV Supplys WolfPack HDMI 4K 30 Hz EDID Emulator is designed for 1080p and 4K2K HDMI signal sources as well as enables you to capture and store EDID (Extended Display Identification Data) information when connected to a display. Our EDID Emulator can be powered directly from the HDMI source or with an optional external power supply.

The EDID Emulator allows you to switch or relocate HDTV or computer video displays while "tricking" the source devices into continuously reading the display information - maintaining smooth video operations throughout the process.

EDID information contains important display settings such as maximum image size, color characteristics, factory pre-set timings, frequency range limits, etc., and since most video extender systems don't offer EDID communication between the source and remote display, the HDMI EDID Emulator is a perfect workaround for ensuring the optimum signal is provided to the display to help prolong the life of your displays.

WolfPack HDMI 4K 30 Hz EDID Emulator Features:

  • Supports 4 different EDID functions: read, write, emulate, and bypass
  • Allows the source device to read the selected EDID information from the unit default or learned EDID memory
  • Built in rotary switch that supports up to 12 sets default EDID settings
  • Allows you to save 3 sets of custom EDID
  • Built in USB port to allow user to write EDID
  • Built in Equalizer for reliable signal quality performance.
  • Supports HDMI 1.4a
  • HDCP 1.4 compliant
  • Support 4K2K@30Hz 4:2:0 and 3D capable.
  • Resolution support up to 4K x 2K (3840 x 2160@24、25、30Hz or 4096 x 2160@24Hz)
  • Able to prevent PC from deactivating inactive HDMI/DVI ports
  • Supports HDMI Deep Color & is 3D / DVI 1.1 compliant
  • Able to read and store the EDID of displays (monitors or projectors), to overwrite the EDID into the EDID Reader/Writer/Re-timer or the HDMI displays
  • Built-in default EDID
  • Able to maintain HDMI/DVI video resolutions
  • Re-synthesizes input HDMI data stream and maintains or improves signal integrity.

EDID Explained: EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more.

Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.

WolfPack HDMI 4K 30 Hz EDID Emulator Settings:

      0: Bypass mode



      1: Custom EDID #1



      2: Custom EDID #2



      3: Custom EDID #3



      4: 720p@60Hz,LPCM 2 channel



      5: 1080i@50Hz,LPCM 2 channel



      6: 1080i@60Hz,LPCM 2 channel



      7: 1080p@24Hz,LPCM 2 channel



      8: 1080p@25Hz,LPCM 2 channel



      9: 1080p@50Hz,LPCM 2 channel



      A: 1080p@60Hz,LPCM 2 channel



      B: 1080p@24 Hz,LPCM 5.1 channel



      C: 1080p@50 Hz,LPCM 5.1 channel



      D: 1080p@60 Hz,LPCM 5.1 channel



      E: 1080p@60 Hz,LPCM 7.1 channel



    F: 3840 x 2160@30 Hz (4K x 2K),LPCM 2 channel

Why not buy this WolfPack HDMI 4K 30 Hz EDID Emulator today?

When a video source is connected to a display, EDID information is shared between devices to ensure optimal video performance. However, if you are using a third party device, such as a video switcher, matrix switch or extender, between your source and display, the EDID information may not pass through correctly.

Our EDID Emulator lets you clone or emulate the EDID settings from your display and deliver it to your video source to ensure proper signaling between your devices.

WolfPack HDMI 4K 30 Hz EDID Emulator EDID Emulator Operation:

  1. By Pass Mode: Rotary switch turn to 0, connect source and monitor, the DDC will connect directly.
  2. Manual Learning EDID Mode: Rotary switch turn to 1~3: Press SET button 3 seconds to learn and write the EDID. Press SET button 0.5 second to select learned EDID
  3. Default Mode: Rotary switch turn to 4~F, press SET button 0.5 second to select default EDID.

WolfPack HDMI 4K 30 Hz EDID Emulator EDID Emulator Contents:

  • 1 - EDID Emulator
  • 1 - CD
  • 1 - Micro USB to DC jack cable

Why not buy this WolfPack HDMI 4K 30 Hz EDID Emulator today?

EDID Emulator User Manual

WHAT I NEED TO KNOW ABOUT EDID

Why not buy this WolfPack HDMI 4K 30 Hz EDID Emulator today?

Note: if your video source provides enough power through the HDMI port, it isn't necessary to reconnect a USB power source once the emulator is connected to the source. However, if the EDID Emulator does not power up when it's connected to the source, you must connect the EDID emulator to a USB power source using the included USB power cable.

Why not buy this WolfPack HDMI 4K 30 Hz EDID Emulator today?

Latest Firmware

Driver and Software

Why not buy this WolfPack HDMI 4K 30 Hz EDID Emulator today?

This WolfPack HDMI 4K 30 Hz EDID Emulator may solve the following problems:

  1. Your source device is not capturing the displays EDID due to having many devices in series with a source
  2. Your PC is not capturing the EDID from your display when you are using HDMI splitters
  3. Your PC is not capturing the EDID from your display when you are using HDMI switchers
  4. Your PC is not capturing the EDID from your display when you are using HDMI matrix switchers
  5. Your PC is not capturing the EDID from your display when you are using HDMI over CAT6 extenders
  6. Your AppleTV is not capturing the EDID from your display when you are using any of the above HDMI devices
  7. You have mixed resolution TVs on your HDMI splitter or HDMI matrix
  8. Your widescreens are greater than 3 years old with older EDID chip sets in them
  9. plus other common EDID issues

Why not buy this WolfPack HDMI 4K 30 Hz EDID Emulator today?

Q: What does the EDID Emulator do?
A:
The EDID Emulator is designed to allow the adjustment of HDMI EDID information that is provided to a source device by a connected display so that it may output the correct video/audio signal.

Aiming to simplify the technical complications involved in video/audio system integration, home theater installation, video/audio equipment testing and experimentation, the unit's learning function allows the user to Read and Write the video/audio EDID to the system. It also supports EDID Emulation and Bypass modes.
