Build Your Own 4K 60 Hz HDMI Matrix Switcher

Build Your Own 4K 60 Hz HDMI Matrix Switcher
$1,250.00
Part Number:
MM4K60HZ
Availability:
In Stock
1:
4K 60 Hz HDMI Matrix Switcher
2:
Supports 4:4:4 at 18 GBPS
3:
Supports HDMI 2.0 & HDCP 2.2
4:
(*) Supports HDR, Dolby Vision & Atmos
5:
(*) Supports Video Wall Function
6:
(*) Supports 100ms Seamless Switching
7:
Apps, Web GUI & 7 Color Touch Screen"
8:
4-Chassis sizes: 9x9, 18x18 & 36x36
MUST CLICK TO BUILD YOUR OWN:
Make a Fair Offer
Ask an Expert

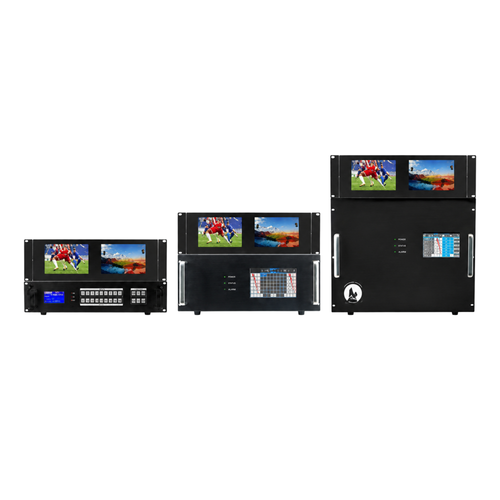

Build Your Own HDTV Supply WolfPack™ 4K 60 Hz HDMI Matrix Switcher that supports 4:4:4, 18 GBPS, HDMI 2.0, HDCP 2.2, HDR, Atmos, Dolby Vision and Video Walls. The core of the 4K 60 Hz HDMI Matrix Switcher consist of either a 9x9, 16x16, 18x18, 36x36 4K 60 Hz Matrix chassis and its highly configurable backplane that supports either 9, 16, 18 & 36 4K 60 Hz input cards and either 9, 18 & 36 4K 60 Hz output cards.

You can control the switch via its free IOS or Android apps, 7" Color Touch Screen, a WEB GUI control or the RS-232/TCPIP serial ports. The 4K 60 Hz HDMI Matrix Switcher also has optional Crestron, Elan & 2-Way Control4 Drivers.

These WolfPack 4K 60 Hz HDMI Matrix Switchers allow any input to be routed to any output; or the same input to be routed to all outputs, or any combination. By having 1-port 4K 60 Hz slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete 4K 60 Hz HDMI Matrix Switchers doesn't have to be sent to us for a repair.

You can build your own 4K 60 Hz HDMI Matrix Switcher using one of these 4K60 4:4:4 Card Familys:

  1. Supports HDR, Dolby Vision & Atmos (Pass through cards - No Video Wall Function, Custom Resolutions & 100ms Seamless Switching)
  2. Supports Video Wall Function with Custom Resolutions & 100ms Seamless Switching (No HDR, Dolby Vision & Atmos)
  3. (*) The above 2- Familys cannot be intermixed
  4. We recommend 4K/60 HDMI Active Optical Cables to be used this these BYO 4K 60 Hz HDMI Matrix Switchers as they support Dolby Vision & Atmos.

Reasons that sets our WolfPack 4K 60 Hz HDMI Matrix Switchers apart from others:

  1. Supports 4:4:4 at 18 GBPS
  2. Supports HDR, Dolby Vision & Atmos or:
  3. Supports Video Wall Function plus 100ms Switching time (Not both above)
  4. Apps, Web GUI, RS232 & Front Control
  5. 3-4K 60 Chassis sizes: 9x9, 18x18 & 36x36
  6. Uses 4K 60 Hz 4:4:4 HDMI slide-in cards
  7. Control via an iPad, Android, Web Browser & RS232
  8. 7" Color Touch screen for setup & control
  9. Optional Crestron, Elan & 2-Way Control4 Drivers
  10. 40-Configuration Scene Saving Settings
  11. 2-Power Supplys with larger matrices
  12. 2-Year Warranty
  13. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  14. Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio

Internal Video Wall Processor: Using the appropriate size chassis, the WolfPack 4K 60 Hz HDMI Matrix switch it is specifically designed to support the below video wall configurations, and more. Your tablet is used to create the video walls and it supports Drag-N-Drop Video Wall Processing.

  • Example 1: Create a 2x2 Video Wall using 4-TVs with either one large picture or 4-individual pictures at one, or multiple locations.
  • Example 2: Create a 3x3 Video Wall using 9-TVs with either one large picture or 9-individual pictures at one, or multiple places.
  • Example 3: Create a 4x4 Video Wall using 16-TVs with either one large picture or 16-individual pictures at one, or multiple places.
  • Example 4: Create a 5x5 Video Wall using 25-TVs with either one large picture or 25-individual pictures at one, or multiple places.



...or any in between easily created by your own tablet.

Fast 100ms Seamless HDMI Switching: These 4K 60 Hz HDMI Matrix Switchers deliver nearly instantaneous video switching with full 4K/60 video at each port. This high-performance engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input, the display outputs and scales the inputs for the best output resolution. It sets the output clock timing and uses a frame buffer to retain the input signal information for the fastest output.

Separate Embedded Audio In and De-embedded Audio Out: These WolfPack 4K 60 Hz HDMI Matrix Switchers allow you to display video with separate audio coming from another audio source as it supports embedding the audio on the HDMI cards connector and then de-embedding the audio on the HDMI cards 3.5mm connector.

WolfPack™ 4K 60 Hz 16x32 HDMI Matrix Switch Configuration Example:

  • 1 - 36-4K 60 card in and 36 -4K card out 4K 60 Hz card cage
  • 16 - 1-port 4K 60 Hz HDMI input cards = 16 - 4K 60 HzHDMI inputs
  • 32 - 1-port 4K 60 Hz HDMI output cards = 32 4K 60 Hz- HDMI outputs
  • 20 - additional 4K 60 Hz input slots for future card expansion to 36-4K 60 Hz inputs
  • 4 - additional 4K 60 Hz output slots for future card expansion to 36-4K 60 Hz outputs

Our 4K 60 Hz HDMI Matrix Switchers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between multiple different modes or copied from the attached displays.

These 4K 60 Hz HDMI Matrix Switchers Feature:

  • 3-chassis sizes: From 9 input and 9 outputs cards to 36 input and 36 output cards.
  • Input Cards Supported:
    • 4K 60 Hz HDMI
  • Output Cards Supported:
    • 4K 60 Hz HDMI
  • HDCP compliant
  • Maximum Input HDMI cable distance: ~10 feet AWG24 HDMI 2.0 HDMI 2.0 high speed cables
  • Maximum output HDMI cable distance: 20 feet with AWG24 4K 60 HDMI 2.0 high speed cables
  • Flexible card type design supporting 9 or 18 or 36 input cards and up and 9 or 18 or 36 output cards
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel 7" Color Touch Screen display for status feedback
  • IP controlled via built-in web server and LAN
  • RS-232/TCPIP Serial interface for remote control via an automation control system
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Hot-pluggable
  • Uses a dual control system
  • Control via Web / RS232)
  • Rack-mountable

The heart of the 4K 60 Hz HDMI Matrix Switchers are the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.

Why not build one of our 4K 60 Hz HDMI Matrix Switchers today?

Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.

The 18x18 and 36x36 include a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply will seamlessly take over the matrices power needs.

Optional Seamless Switching: The seamless switching feature eliminates virtually all of the switching delay, commonly found in most switch and matrix devices.

Modular HDMI Matrix Routers Specs:

  • Control: TCP/IP, RS232 and front buttons
  • Power Supply: 100 to 240VAC, 50-60Hz
  • Power Consumption: 50W 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: -25℃ to 55℃

Why not build one of our 4K 60 Hz HDMI Matrix Switchers today?

Control

control4-drivers-for-wolfpack-modular-matrix-systems elan-drivers-for-wolfpack-modular-matrix-systems rti-drivers-for-wolfpack-modular-matrix-systems urc-drivers crestron-drivers-for-wolfpack-modular-matrix-systems amx-drivers-for-wolfpack-modular-matrix-systems extron-drivers savant-drivers-written-for-our-wolfpack-matrix-systems

Control Drivers

When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:
  1. Free iPad App (iOS)
  2. Free iPhone App (iOS)
  3. Free iPod App (iOS)
  4. Free Android Tablet App
  5. Free Android Phone App
  6. Free Samsung Galaxy Tablet App
  7. Free Samsung Galaxy Phone App
  8. Free Web GUI from any browser is standard
  9. Front panel push-buttons are standard
  10. Optional $100 7" Color Touch Screen on select models (Call)
  11. Dual RS232 ports are standard on select models
  12. Dual TCPIP ports are standard on select models
  13. DTVGame Sports Bar DirecTV™ Control System (Call)
  14. Allonis Sports Bar DirecTV™ Control System (Call)
  15. Free One-Way Control4 Drivers
  16. Optional $99 2-Way Control4 Drivers
  17. Optional $99 URC Drivers
  18. Optional $129 Crestron Drivers
  19. Optional $99 Elan Drivers
  20. Optional $99 RTI Drivers
  21. Optional Harmony Remote Control Codes for select models (Call)
For an up-to-date listing of all the methods to control our WolfPack Matrix Switchers go to Ways to Control Our WolfPack Family Of Modular Matrix Systems.

Why not build one of our 4K 60 Hz HDMI Matrix Switchers today?

DirecTV Controller

Apps

HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™

...and we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be 8x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.

CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.

Why not build one of our 4K 60 Hz HDMI Matrix Switchers today?

Q: What are the HDCP options?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
  1. Mix-n-Match combinations:
  2. Non-HDCP source to a HDCP compliant TV
  3. HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship
Q: How do the 2-power supplies work with the matrix?
A: For the 2 power supply system on the card cage matrix, it's a redundant system. We can have two power supply system on at the same time (if one's down, it can hop to another, it guarantees the matrix won't shut down). It also can operate with just one power supply on and the other one is for back-up

Q: What are the dimensions of the chassis?
A: They are:
9x9: 2U - 482*390*88mm(L/W/H) - 18.97*15.35*3.46 inches

18x18: 4U - 482*390*178mm(L/W/H) - 18.97*15.35*7.01 inches

36x36: 8U - 482*390*355mm(L/W/H) - 18.97*15.35*13.98 inches

Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.

Why not build one of our 4K 60 Hz HDMI Matrix Switchers today?

HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.

If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at support@hdtvsupply.com

For Questionnaire Click Here

















Below is a video of the WolfPack 9x9 card cage model showing the fast switching speed and its features. The larger card cage models will operate exactly the same but will allow more input and output cards.











Why not build one of our 4K 60 Hz HDMI Matrix Switchers today?
