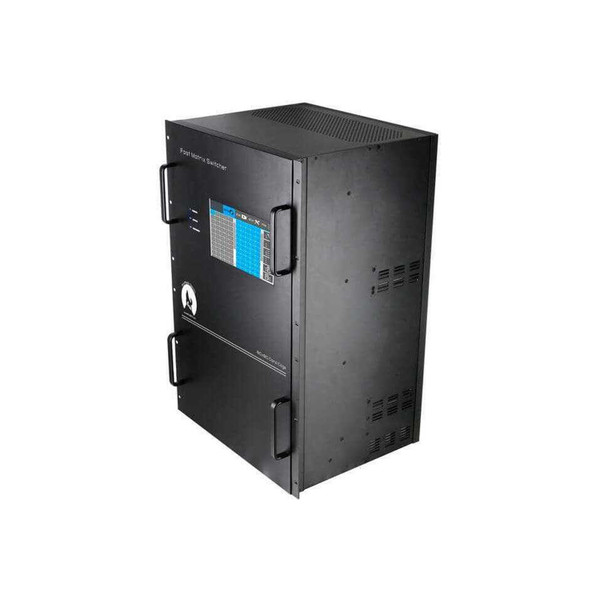

HDTV Supplys WolfPack™ 4K 32x80 HDMI Matrix Switcher is an integrated HDMI video and HDMI audio modular HDMI matrix switcher. The chassis backplane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs or any combination with 4K/30 HDMI in and 4K/30 out cards.
The core of the WolfPack 32x80 HDMI Matrix Switcher consists of an 80x80 Modular Matrix chassis (16U) and it's highly configurable backplane that supports 32 - HDMI inputs and 80 - HDMI outputs. It is also 4K/30 compliant. You can control the switch via its IOS or Android app, a 10" Color Touch Screen from the front panel, a WEB GUI control, LAN or the 2-RS-232 serial ports. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android App as well as above. The matrix also has optional Crestron, Control4 & Elan drivers.
By having 4-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.
The heart of the WolfPack 32x80 HDMI Matrix Switcher is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment is working.
Reasons that sets our WolfPack™ HDMI Modular Matrix Switchers apart from others:
- Supports 4K/30 (4X better than 1080p)
- 4K 4-Port Input & Output cards are HDMI 1.4, DVI 1.1 & HDCP 1.4 compliant
- 40 - Preset scenes that can be Saved and Recalled
- Control via an iPad, Android, Web Browser (WEB GUI), LAN, Dual RS232 & 10" Color Touchscreen
- Optional Crestron, Control4 & Elan drivers
- Fast Switching
- 2-Power Supplys w/automatic switch-over if a problem occurs
- 2-Year Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
WolfPack™ WolfPack 32x80 HDMI Matrix Switch Configuration:
- 1 - 4K/30 32-card in and 4K/30 80 card out card cage (16U)
- 8 - 4K 4-port input cards = 32-4K HDMI inputs
- 20 - 4K 4-port HDMI output cards = 80-4K HDMI outputs
These Modular HDMI Matrix Routers support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between different modes or copied from the attached displays.
WolfPack 32x80 HDMI Matrix Switcher Feature:
- 80 input and 80 outputs Card Cage Chassis (16U)
- 4K/30 HDMI Compliant (4X better than 1080p)
- HDCP 1.4 compliant
- Input HDMI cable distance: ~20 feet AWG24 4K HDMI 2.0 high speed cables
- Output HDMI cable distance: ~30 feet AWG24 4K HDMI 2.0 high speed cables
- Flexible card type design supporting 80 HDMI inputs and 80 HDMI outputs
- Advanced EDID management for rapid integration of sources and displays
- 10" Color Front-panel Touchscreen for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for remote control via an automation control system
- Supports resolution exchanges with several resolutions can be chosen and used
- Hot-pluggable
- Uses a dual control system
- Control via Web / RS232 and Touchscreen & more (no remote control)
- Rack-mountable
Why not buy this WolfPack 32x80 HDMI Matrix Switcher today?
32x80 HDMI Matrix HDBaseT Switcher Specs:
- Chassis Input: 32 - HDMI Inputs
- Chassis Output: 80 - HDMI Outputs
- Input/ output impedance: 75 ohms
- Gain: 0 dB
- Maximum delay: 5nS (+/- 1nS)
- Maximum pixel clock: 165 MHz
- Control: Dual RS-232 control with 9-pin female D connectors
- Pin Configurations: 2 = TX, 3 = RX, 5 = GND
- Modular Configuration: Up to 80 inputs & 80 outputs
- Input cable distance: ~20 feet AWG22 HDMI 1.4 high speed cable
- Supported Input & Outputs Signals:
- HDMI and Display Port: up to 4K/30
- Control: TCP/IP, Dual RS232 and front color screen
- Operating Temperature: -10℃ to 50℃
- Storage Temperature: -25℃ to 55℃
Why not buy this 32x80 HDMI Video Matrix Switcher today?
Brochure for the 32x80 Card Cage
Specification for the 32x80 Card Cage
DO NOT USE EZ45 CAT6 CONNECTORS WITH HDBaseT PRODUCTS
EDID Learning Instruction for the Cards
RS232 Commands in HEX and ASCII format
Why not buy this 32x80 HDMI Video Matrix Switcher today?
Reasons To Buy an HDTV Supply WolfPack Product
Why not buy this WolfPack 32x80 HDMI Matrix Switcher today?
Why not buy this WolfPack 32x80 HDMI Matrix Switcher today?
