HDTV Supplys Wolfpack 22x1 Network HDMI Matrix Switcher is an easy to use HDMI video switching and distribution system that allows the design of multi-source to multi-video display systems using standard Ethernet cables. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination. It is controlled by a PC or MAC via its LAN port with the supplied Browser Based WEB GUI and optionally via a WEB GUI on a cascaded wireless Router.

HDTV Supplys Wolfpack HDMI over IP products, like this one, lets you create 1080p HDMI matrix systems using a dedicated Gigabit network and CAT-5e/6 cabling. Many combinations of HDMI inputs and HDMI outputs is possible that can be easily expanded for additional HDMI sources and HDMI TVs and projectors given ports are available on the supplied 24-port Gigabit Ethernet switch.

Our Wolfpack 22x1 Network HDMI Matrix Switch is a preconfigured matrix switch using 22 - Transmitters and 1 - Receivers and our 24 - port Ethernet Switch. It uses CAT 5e/6 cables and a Gigabit Ethernet LAN switch with MJPEG techniques and an industry standard IP protocol to deliver 1080p video from sources that are 300 feet away from the Ethernet switch and another 300 feet away to the TVs. It also allows the system to grow in the field as its design allows you the flexibility of adding more video sources or more displays to the system based upon the number of unused Ethernet ports available.

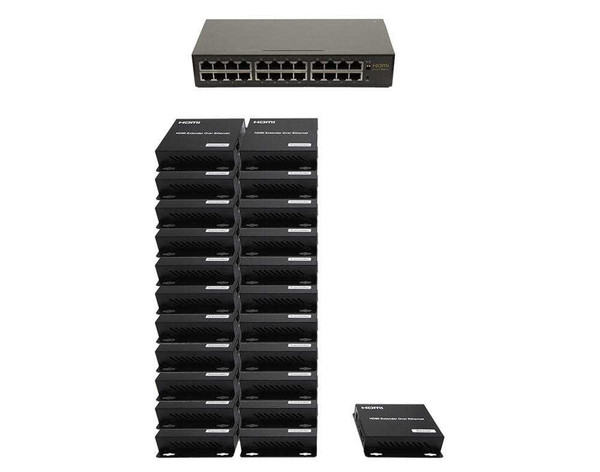

22x1 Network HDMI Matrix Switcher Configuration:

1. 22 - Transmitters with their AC adapters
2. 1 - Receivers with their AC adapters
3. 1 - 24-port Gigabit Ethernet switch

22x1 Network HDMI Matrix Switcher Features:

• Supports 720p and 1080p HDMI video plus 2-channel audio
• Plug-and-play operation - no programming or setup required
• Extends 1080p HDMI signals up to ~300 feet over a single CAT6/7 cable
• Traffic can be unicast, multicast or broadcast for different applications
• Allows Wideband IR remote control of sources devices
• Control from a Browser Based GUI
• Compliant with HDCP 1.2
• Uses our Gigabit IP switches for extension and distribution
• Extends 1080p HDMI signals up to 300 feet over a single UTP CAT6/7 cable
• Flexible and scalable 1080p HDMI broadcasting via an included Gigabit Ethernet switch (LAN)
• Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading .
• Supports Point-to-Point, Point-to-Many and Many-to-Many network configurations.

CAUTION: This HDMI Matrix Switcher Over a LAN system requires a dedicated HDMI video system using the supplied Ethernet switch and not attached to any existing LAN system due to the unknown bandwidth impact on the HDMI video from that network. A single, dedicated, LAN must be used to keep it from interfering with the rest of an existing LAN or vice versa. With all devices in a single LAN, switching sources involves modifying the IP of the Receiver rather than actively manipulating the LAN configuration of the managed switch. The design needs to meet these specs:

1. One Dedicated LAN
2. No other network appliances in the LAN
3. Unique subnet
4. No other network appliances in the subnet

NOTE: This Network Matrix comes with HDMI Transmitters and HDMI Receivers and each of them needs the IP address to be setup based upon your needs. The MAC address also needs to be setup based upon your unique system configuration. Please see the above VIDEOS on how to do it.
