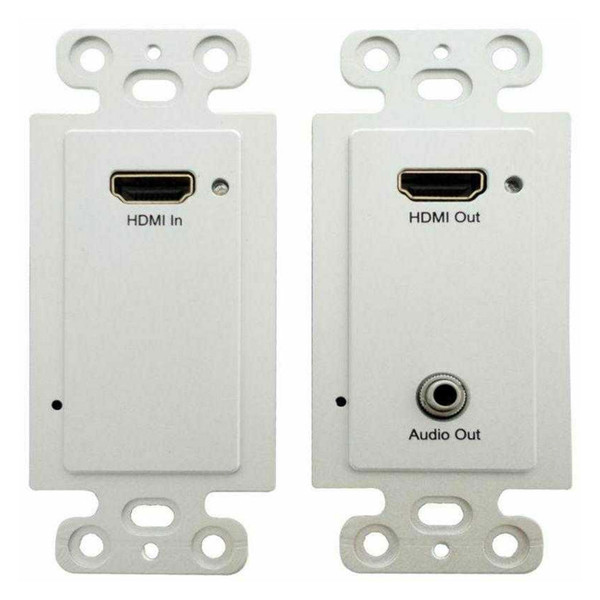

HDTV Supplys WolfPack™ 1x5 Wallplate HDMI Matrix Switch Over IP with POE use our implementation of H.264 LAN technology as the compression format as it occupies a lower bandwidth and transmits HDMI video and audio over the LAN for a better picture. Because it is a 1x5 HDMI Matrix Switcher it allow the any input to be routed to any output or the same input to be routed to all outputs or any combination.
The 1x5 Wallplate HDMI Matrix Switch Over IP with POE supports distances up to ~400 feet over single CAT6/7 cable in point to point, point to many & many to many configurations. The 1x5 Matrix Switch allows you to route signals from any of the four video inputs to any or all of the four video outputs, in any combination. POE technology from your POE Ethernet switch (not supplied) supplys power to the Wallplate Transmitters & Wallplate Receivers. The set includes a DC 5V 1A power supply when POE is not used.
POE Designed: By utilizing POE (Power Over Ethernet) technology both HDMI audio and video signals and power can be sent to a device via standard CAT6/7/6a cabling. This means you do not need to install a power outlet at the device location and you can use readily available, relatively low cost Ethernet cabling with this HDMI Wallplate Extender over IP Extender. A Ethernet POE switch is required and not supplied.
1x5 Wallplate HDMI Matrix Switch Over IP with POE Features:
- Supports Dynamic Host Configuration Protocol (DHCP)
- Supports one to one, one to many, many to one, many to many modes, with large cascade
- Follows the North American Wall plate standard
- Transmit up to 120m or ~400 feet over single CAT6/7 cable
- Using H.264 compression encoding and supports resolutions up to 1080p@60hz
- Complies with TCP/IP protocol with a streaming bit rate to 15Mbps
- Supports Analog 2.0 Audio Extraction at Receiver for an Amp
- Supports LPCM audio format
- Supports PC Tools control
- Compatible with Video Players such as VLC, etc
- 802.3 of compliant POE (No Power Supplys needed when connecting with a user supplied POE Switch)
- HDCP 1.3 Compliant
- Includes a DC 5V 1A power supply when POE not used.
Why not buy this 1x5 Wallplate HDMI Matrix Switch Over IP with POE today?
HDMI conversions to TCP/IP allows you to forego the limitations of point-to-point extender systems and transmit directly over your network. You can also use this 1x5 Wallplate HDMI Matrix Switch Over IP with POE as a matrix switch and transmit for up to ~400 feet over a single CAT6/7 cable or 330 feet over a CAT6 cable.
1x5 Wallplate HDMI Matrix Switch Over IP with POE Specs:
- Includes 1-POE TXs and 5-POE RXs
- Data compression: Complies to H.264
- Data transmission protocol: Complies to TCP / IP
- Supported Video format: 480i/480p/576i/576p/720p/1080i/1080p@60HZ
- Supported Audio format: LPCM, Audio sampling rate 48KHZ
- Bandwidth required: 15 Mb
- HDCP: Compliant HDCP 1.3
- IR: Supports IR control with an IR frequency of 20 ~ 60 KHZ
- RS232 Baud rate: Default 2400 HZ, total 8 kinds optional
- Switch request: Supports IGMP and supports DHCP
- Group ID Group 00 ~ group 63
Why not buy this 1x5 Wallplate HDMI Matrix Switch Over IP with POE today?
HDMI Over LAN Product Comparison
CAT6 Installation Tips (Don't Use Patch Panels)
Why not buy this 1x5 Wallplate HDMI Matrix Switch Over IP with POE today?
PoE+ # Ports Stackable Jumbo Frames Full Layer 2/3 Support PoE Watts
LUXUL AMS 2616P ✓ 24 (16 PoE) ✓ ✓ 250
LUXUL AMS 1208P ✓ 10 (8 PoE) ✓ ✓ 130
LUXUL XMS-2624P ✓ 24 ✓ ✓ 370
LUXUL AMS-4424P ✓ 24 ✓ ✓ ✓ 250
LUXUL XMS-5248P ✓ 48 ✓ ✓ 740
LUXUL XMS-7048P ✓ 48 ✓ ✓ ✓ 740
CISCO SG300 SERIES ✓ 10-52 ✓ ✓ 62-740
CISCO SG500 SERIES ✓ 28-52 ✓ ✓ ✓ 180-740
CISCO SG500X SERIES ✓ 24-48 ✓ ✓ ✓ 180-740
Why not buy this 1x5 Wallplate HDMI Matrix Switch Over IP with POE today?
A: No, the user must supply it.
