WolfPack 4K 30 Hz 1x22 HDBaseT Splitter w/22-HDBaseT Receivers & Output Control to 220'

WolfPack

4K 1x22 HDBaseT Splitter w/22-HDBaseT Receivers & Output Control to <i>220'</i>
$6,425.00
Part Number:
MM1x22HDBT220
UPC:
728370339949
Availability:
Usually ships in 5-7 business days
1:
4K 1x22 HDBaseT Splitter with Local Output
2:
Individual OFF/ON Control of any Output
3:
Apps, Web GUI & Front Control of Outputs
4:
Includes 22-4K HDBaseT POC Receivers
5:
220 feet at 1080p & 4K at 110 feet
6:
Field Upgradeable to more Ins & Outs
Make a Fair Offer
Ask an Expert

WolfPack HDMI Extenders HDTV Supplys WolfPack™ 4K 1x22 HDBaseT Splitter allows you to control the outputs of the splitter with an app. The 19" Rack Mount Chassis back plane allows one 4K-HDMI Input to be split to 22-4K Outputs using 22-4K HDBaseT extenders with POC (which are included). We only use HDBaseT technology as it sends uncompressed video & audio with zero latency upwards of 220 feet at 1080p & 4K at 110 feet using one CAT6 cable. The picture quality is like using a 3 foot HDMI cable. The base model of this 1x22 HDBaseT Splitter is HDTV Supplys Modular HDMI Matrix Router and is preconfigured with 1-female HDMI input and 22-HDBaset outputs and comes with 22-HDBaseT receivers. By having 1-port slide in cards the 1x22 HDBaseT Splitter is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete splitter does not have to be sent to us for a repair.

The unique feature of this 1x22 HDBaseT Splitter is that you have complete control of each one of the 22-outputs of which you can either turn OFF or turn ON the signal going to the 22-displays. Usual 1x22 splitters do not allow you to do that. You control the outputs of this 1x22 HDBaseT splitter with an IOS or Android app, front buttons, WEB GUI control or the RS-232 serial port. It also has optional URC, Elan & 2-Way Control4 drivers and more. Other features will allow you to add more outputs to a total of nine and even growing it to a full 4K matrix switch in the future by buying HDMI input cards.

The benefit of having individual OFF and ON control of any output is that it can be used in installations where you may not want to send the picture, audio or video to all screens like in Q/A testing facilities, factories, schools and universities, military installations and in homes where you may want to shut off the cable box to the kids rooms while they're doing their homework. You can even save up to 40-Presets for often used scenes.

Reasons that sets our WolfPack™ 1x22 HDBaseT Splitter apart from others:

  1. Complete control of the HDBaseT outputs
  2. Field Upgradable
  3. Breakout R/L audio on the input card to go to an amp
  4. Additional HDMI output for a local monitor
  5. Power Over Cable (PoC) design means there are no AC adapters needed at the TVs.
  6. 4K/30 for the best picture, 4X better than 1080p
  7. HDCP 1.4 compliant on all inputs and HDBaseT Receivers
  8. Includes the best HDBaseT HDMI to CAT6 extenders, not cheap H.264 w/fuzzy compressed video
  9. 40 - Programmable Preset Scenes To Choose From
  10. No latency
  11. Control of the outputs via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons
  12. 2-Year WolfPackCare Advance Replace Warranty
  13. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  14. Other In & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio

WolfPack™ 1x22 HDBaseT Splitter Configuration:

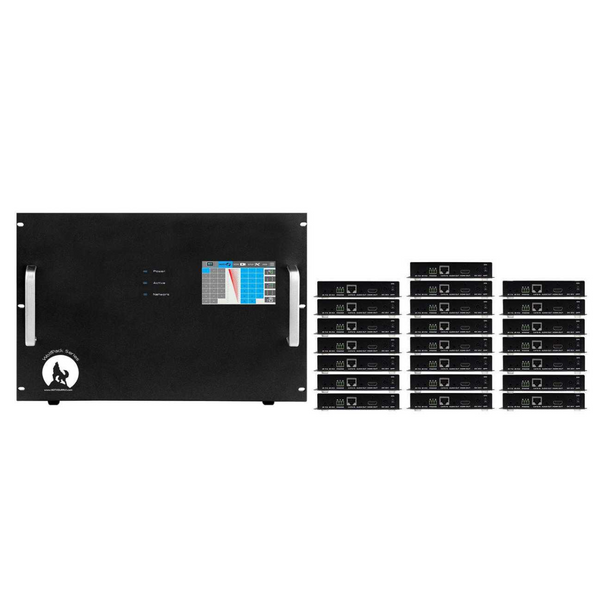

  • 1 - Small 2U 4K 36-card in & 36-card out card cage chassis
  • 1 - 1-port 4K HDMI input card with separate audio out
  • 1 - 1-port 4K HDMI output card for a local monitor
  • 22 - 1-port 4K HDMI HDBaseT output cards w/POC
  • 22 - 4K HDBaseT receivers to 220 feet at 1080p & 4K/30 at 110 feet

HDTV Supplys implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CAT6 cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a factory, church or auditorium, the speakers lips are always in synch with the video image on all the TVs and projectors 100's of feet away.

1x22 HDBaseT Splitter Features:

  • 4K Chassis size: Supports 36 input and 36 output cards
  • 1-Input Card:
    • 1 - 4K Input HDMI card with a separate 3.5mm audio out
  • 22 - 4K Output Cards:
    • 1 - 1-port 4K HDMI output card for a local monitor
    • 22 - 4K HDMI HDBaseT RJ45 output cards
    • 22 - 4K HDBaseT Receivers to support 220 feet at 1080p & 4K at 110 feet
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel LCD display for status feedback
  • Dual IP controlled via built-in web server and LAN
  • Dual RS-232 Serial interface for remote control via an automation control system
  • Supports fast splitting without any black/ blue/ split screen in any of the TVs
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Hot-pluggable
  • Rack-mountable

HDTV Supply, Inc. is an HDBaseT.Org Approved Adopter of HDBaseT™ Products.

Why not buy this 1x22 HDBaseT Splitter today?

Supports EDID Management: Ensures that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.

Modular HDBaseT Splitter Specs:

  • HDCP 1.4 Compliant
  • Locking HDMI connectors
  • Rack mountable metal enclosure with rack ears
  • Modular Configuration: 36 inputs and 36 outputs chassis
  • Input cable distance: ~12 feet AWG24 HDMI 1.4 high speed cable
  • Supported Input & Outputs Signals:
    • HDMI and HDBaseT: up to 4K 4:2:0 and 1080p 4:4:4
    • CAT6: HDBaseT technology to 220 feet
  • Control: TCP/IP, RS232 and front buttons
  • Power Supply: 100 – 240VAC, 50-60Hz
  • Power Consumption: 50W 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: -25℃ to 55℃

Why not buy this 1x22 HDBaseT Splitter today?

Our WolfPack HDBaseT over CAT6 Extenders let set-top boxes, DVD players & other HDMI devices to be connected to HDMI displays that have an HDMI input that are >300 feet away from the source. These HDBaseT 2.0 & 1.4 products are the newest technology that supports HDMI 2.0, 1.4, 2D & 3D at >300 feet using only one CAT6 cable. By reducing the Ethernet cabling requirements from two to one, it allows you to easily tap into existing in-wall CAT6 wiring.

HDBaseT Video delivers full HD / 3D and 2K / 4K uncompressed video to a network of devices or to a single device (point-to-point ). Since the video is passed through the HDMI chipset, HDBaseT supports all key HDMI 1.4 and HDMI 2.0 features including EPG, CEC, EDID, and HDCP. HDBaseT is the only standard for delivering UltraHD 4K video up to 100m long.

HDBaseT audio passes through directly from the HDMI chipset and supports all standard formats including Dolby Digital, DTS, Dolby TrueHD and DTS HD-Master Audio.

These HDBaseT Products Feature:

  • Uncompressed video: The picture quality at 300 feet is the same as using a 3 foot HDMI cable.
  • No more cable clutter: Fewer cables and less mess with its single cable connection
  • Distance is no longer a concern: Runs over a 100m/328ft CAT6/7 cable and support for multi-hops (8 x 100m), HDBaseT provides point to point connectivity and full multimedia distribution with higher reliability, longer distance and lower cost
  • Quality cable supports HD, 2D and 3D: HDBaseT utilizes a quality cable proven for transferring HD and new 3D formats
  • Power over cable: Some of our HDBaseT products sends 100W of power simultaneously eliminating the need for a power outlet to be installed near the display
  • Support for quality controls: HDBaseT supports various controls while ensuring reliability and low latency
  • Low cost installations: Requires only one low cost LAN cable with standard RJ-45 connectors already installed in many homes

These HDBaseT products can support full 3D with resolutions up to 4Kx2K (4 times the 1080p), audio, IR remote and Ethernet sent over the same CAT6 cable. Many also feature 3DTV, deep color, lip sync and audio delay w/both the IR back-channel and RS-232 connection can be used to control the display from the remote location. We at HDTV Supply love HDBaseT products as we never get returns nor tech support calls so place your HDBaseT order today.

Why not buy one of our HDBaseT products today?

Free Android and iOS App: The IOS App for this WolfPack HDBaseT Splitter is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.

For the Android App click the following link and download it. Go to Android App for control of this HDBaseT Splitter.

Here is the RS232 User Manual if you want to write your own drivers.

Why not buy this 1x22 HDBaseT Splitter today?

Control

When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:
  1. Free iPad App (iOS)
  2. Free iPhone App (iOS)
  3. Free iPod App (iOS)
  4. Free Android Tablet App
  5. Free Android Phone App
  6. Free Samsung Galaxy Tablet App
  7. Free Samsung Galaxy Phone App
  8. Free Web GUI from any browser is standard
  9. Front panel push-buttons are standard
  10. Optional $100 7" Color Touch Screen on select models (Call)
  11. Dual RS232 ports are standard on select models
  12. Dual TCPIP ports are standard on select models
  13. DTVGame Sports Bar DirecTV™ Control System (Call)
  14. Allonis Sports Bar DirecTV™ Control System (Call)
  15. Free One-Way Control4 Drivers
  16. Optional $99 2-Way Control4 Drivers
  17. Optional $99 URC Drivers
  18. Optional $129 Crestron Drivers
  19. Optional $99 Elan Drivers
  20. Optional $99 RTI Drivers
  21. Optional Harmony Remote Control Codes for select models (Call)
For an up-to-date listing of all the methods to control our WolfPack Matrix Switchers go to Ways to Control Our WolfPack Family Of Modular Matrix Systems.

Control Drivers

HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Splitters & Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

This modular HDMI system can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™ (we have)
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™ (we have)
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™

...and we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.

CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.

Why not buy this 1x22 HDBaseT Splitter today?

Q: How many Preset scenes can I Save and Recall?
A: 40.

Q: What are the HDCP options?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.

  1. Mix-n-Match combinations:
  2. Non-HDCP source to a HDCP compliant TV
  3. HDCP source to a non-HDCP compliant TV

Q: What is you test procedure?
A: Our testing procedure is:

  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship

Q: What is the dimension of the chassis?
A: 36x36: 8U - 482x390x355mm or 18.97x15.35x13.98 inches (L/W/H)

Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.

Q: How is HDBaseT technology different than others?
A: Unlike other HD distribution technologies, HDBaseT is the only technology which enables CAT6/6/7 connectivity from 70 meters to 100 meters, depending upon the specific product, for uncompressed full HD multimedia content and up to 100 watts of charging power via a single cable. HDBaseT is optimized for video applications and can connect all HDBaseT enabled home entertainment devices. Also, HDBaseT technology has the capacity to deliver double the resolution available today to future 2K and 4K formats. Other existing solutions also require a specific cable and/or a new proprietary connector while HDBaseT utilizes the existing Ethernet infrastructure.

HDMI HDbaseT Extender Helpful Tips & Recommendations:

  • Keep cables away from any equipment with an electromagnetic wave, e.g., mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines, etc.
  • CAT6/6 cables should not exceed 220 feet or (70m).
  • Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
  • Shielded CAT6/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).

Why not buy this 1x22 HDBaseT Splitter today?
