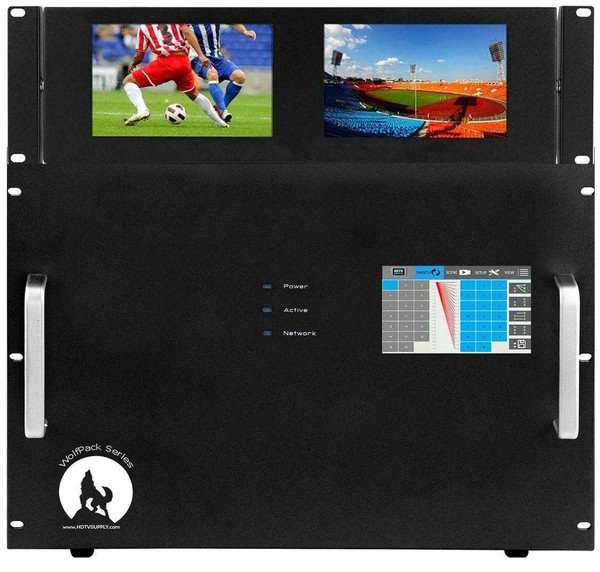

WolfPackPro 4K 30 Hz 16x32 HDMI Matrix Switcher w/Dual Monitors

WolfPackPro

WolfPackPro 4K 16x32 HDMI Matrix Switcher w/Dual Monitors
MSRP: $7,250.00
$5,950.00
(You save $1,300.00 )
Part Number:
WPP16x32
UPC:
728370336450
Availability:
In Stock
1:
4K/30 16x32 HDMI Matrix Switcher (8U)
2:
Dual 7 Color Monitors & Free 7" Tablet"
3:
7 Color Touchscreen for Control (3U)"
4:
Apps, WEB GUI, LAN, RS232 & Front Control
5:
Separate Audio on HDMI In/Out Cards
6:
Optional Elan & 2-Way Control4 Drivers
Make a Fair Offer
Ask an Expert

WolfPackPro HDMI Switchers HDTV Supplys 4K WolfPackPro 16x32 HDMI Matrix Switcher w/Dual Monitors is a preconfigured integrated modular HDMI video & HDMI audio matrix switcher. The 36x36 chassis (8U) back plane allows HDMI technologies to be converted & switched eliminating external converters & it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination. The 4K WolfPackPro 16x32 HDMI Matrix Switcher is 4K at 30 Hz compliant and includes rack mount Dual 7" Color Monitors & a 7" Color Touchscreen for control as well as separate audio outs on both the HDMI in and out cards for connecting to your audio system.

The core of the 4K WolfPackPro 16x32 HDMI Matrix Switcher w/Dual Monitors consist of a 16x32 Modular Matrix chassis (8U) & its highly configurable WolfPackPro backplane that supports 36 input cards & 36 output cards. You can control the 16x32 HDMI Matrix Switcher via a 7" Color Touchscreen, Elan & 2-Way Control4 drivers, WEB GUI control, the dual RS-232 serial port & the supplied iOS/Android Apps. The matrix does not have IR nor a remote control. It comes with a free 7" Tablet.

The 4K WolfPackPro 16x32 HDMI Matrix Switcher manages HDMI input signals for the female HDMI inputs and female HDMI outputs for HDMI cabling. By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair.

WolfPackPro 4K 16x32 HDMI Matrix Switcher Configuration:

  • 1 - 4K 36-card in & 36-card out card cage chassis (8U) with 7" Color Touchscreen Control
  • 16 - 1-port 4K HDMI input cards with separate 3.5mm audio out
  • 32 - 1-port 4K HDMI output cards with separate 3.5mm audio out
  • 2 - 2-port 4K HDMI cards for the Dual Monitors w/o separate audio outs
  • 1 - Rack Mount Dual 7" Color Monitors (3U)
  • 2 - Free 3 foot HDMI cables for the 2-monitors
  • 1 - Free 7" Amazon Fire Tablet

Reasons that sets our WolfPackPro™ HDMI Modular Matrix Switchers apart from others:

  1. 4K/30 for the best picture. 4X better than 1080p
  2. Includes Dual 7" Color Monitors
  3. Includes 7" Color Touchscreen for control
  4. Separate Audio Outs on both HDMI In/Out Cards
  5. 40 - Preset scenes that can be Saved and Recalled
  6. Optional Elan & 2-Way Control4 drivers
  7. HDBaseT HDMI to CATx extenders, not cheap H.264 with fuzzy compressed video
  8. Closed Caption (CC) Pass-through
  9. Control via an iPad App, Android App, Web Browser (WEB GUI), Dual RS232 & 7" Color Touchscreen
  10. 2-Power Supplys w/automatic switch-over if a problem occurs
  11. 2-Year WolfPackPro Advance Replace Warranty
  12. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  13. Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
  14. Optional low cost Video wall Processors

This 4K WolfPackPro 16x32 HDMI Matrix Switcher supports long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 4K WolfPackPro 16x32 HDMI Matrix Switcher also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc.

4K WolfPackPro 16x32 HDMI Matrix Switcher Features:

  • Chassis size: 36 input & 36 outputs cards (8U)
  • Input Cards Supported:
    • 16 - 4K female HDMI single port cards = 16 - HDMI inputs with separate audio outs
  • Output Cards:
    • 32 - 4K female HDMI single port cards = 32 - HDMI outputs with separate audio outs
    • 2 - 2-port 4K HDMI cards for the Dual Monitors without separate audio outs
  • Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
  • Output HDMI cable distance: ~35 feet AWG24 HDMI 2.0 high speed cables
  • Flexible card type design supporting 36 input cards and 36 output cards
  • Hot Swappable with easy plug n play
  • Dual RS232 serial control port for using serial commands
  • TCP/IP control via Ethernet
  • Global presets to save and recall the function
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel push buttons for local switching
  • IP controlled via built-in web server and LAN
  • RS-232 Serial interface for remote control
  • Supports fast switching, no black/ blue/ split screen while switching
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Uses a dual RS232 control system
  • Rack-mountable

The heart of the 4K WolfPackPro 16x32 HDMI Matrix Switcher w/Dual Monitors is the WolfPackPro chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.

Why not buy buy this 4K WolfPackPro 16x32 HDMI Matrix Switcher w/Dual Monitors today?

Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply will seamlessly take over the matrices power needs.

Modular HDMI Matrix Switcher Specs:

  • Modular chassis size: 36x36 = 36 inputs and 36 outputs
  • Input cable distance: ~25 feet AWG22 HDMI 1.4 high speed cable
  • Output cable distance: ~35 feet AWG22 HDMI 1.4 high speed cable
  • Separate Audio Out on both HDMI In/Out Cards
  • Supported Input & Outputs Signals:
    • HDMI and Display Port: up to 4K at 30 Hz
  • Control TCP/IP, Dual RS232 and front screen
  • Power Supply 100 to 240VAC, 50-60Hz
  • Power Consumption 50W 70W
  • Operating Temperature -10℃ to 50℃
  • Storage Temperature -25℃ to 55℃

Why not buy buy this 4K WolfPackPro 16x32 HDMI Matrix Switcher w/Dual Monitors today?

Frequently
Reasons To Buy an HDTV Supply WolfPackPro Product

Why not buy buy this 4K WolfPackPro 16x32 HDMI Matrix Switcher w/Dual Monitors today?

Control

When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:
  1. Free iPad App (iOS)
  2. Free iPhone App (iOS)
  3. Free iPod App (iOS)
  4. Free Android Tablet App
  5. Free Android Phone App
  6. Free Samsung Galaxy Tablet App
  7. Free Samsung Galaxy Phone App
  8. Free Web GUI from any browser is standard
  9. Front panel push-buttons are standard
  10. Optional $100 7" Color Touch Screen on select models (Call)
  11. Dual RS232 ports are standard on select models
  12. Dual TCPIP ports are standard on select models
  13. DTVGame Sports Bar DirecTV™ Control System (Call)
  14. Allonis Sports Bar DirecTV™ Control System (Call)
  15. Free One-Way Control4 Drivers
  16. Optional $99 2-Way Control4 Drivers
  17. Optional $99 URC Drivers
  18. Optional $129 Crestron Drivers
  19. Optional $99 Elan Drivers
  20. Optional $99 RTI Drivers
  21. Optional Harmony Remote Control Codes for select models (Call)
For an up-to-date listing of all the methods to control our WolfPack Matrix Switchers go to Ways to Control Our WolfPack Family Of Modular Matrix Systems.

Control Drivers

DirecTV Controller

Apps

HDTV Supply has successfully installed our WolfPackPro, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 User's Manual has and will work to control the matrix directly.

Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants

Why not buy buy this 4K WolfPackPro 16x32 HDMI Matrix Switcher w/Dual Monitors today?

Q: What are the HDCP options?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
  1. Mix-n-Match combinations:
  2. Non-HDCP source to a HDCP compliant TV
  3. HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship
Q: How do the 2-power supplies work with the matrix?
A: For the 2 power supply system on the card cage matrix, it's a redundant system. We can have two power supply system on at the same time (if one's down, it can hop to another, it guarantees the matrix won't shut down). It also can operate with just one power supply on and the other one is for back-up

Q: What are the dimensions of the chassis?
A: 36x36: 8U - 482x390x355mm(L/W/H) - 18.97x15.35x13.98 inches

Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
