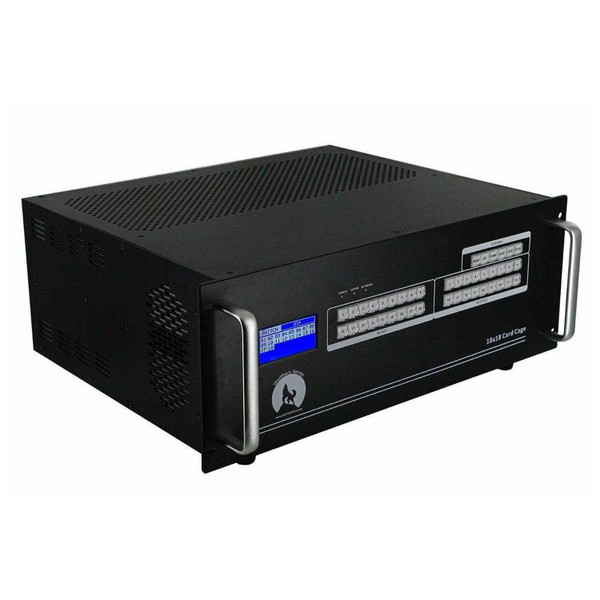

HDTV Supplys WolfPack™ Modular 10x18 HDMI Matrix Switch with Video Wall Processor is an integrated HDMI video and HDMI audio modular HDMI matrix routers. The chassis back plane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination with multiple technologies.
The core of the 10x18 HDMI Matrix Switch with Video Wall Processor consist of a 18x18 Modular Matrix chassis and its highly configurable backplane that supports up to 18 input cards and up to 18 output cards. It is also 1080p 4:4:4 compliant. You can control the switch via its IOS or Android app, 2-button fast switch from the front buttons, a WEB GUI control or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android App as well as above.
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.
What sets our WolfPack™ 10x18 HDMI Matrix Switcher Chassis apart from others:
- Built-in Video Wall Processor with WEB GUI Control
- Instant (100ms) Seamless Switching
- 1080p cards for the best picture
- HDCP compliant
- 2-Power Supplys with w/automatic switch-over if a problem occurs
- 40 - Preset scenes that can be Saved and Recalled
- Closed Caption (CC) Pass-through
- Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons
- Built-in 8-pin DIP Switch for resolution adjustment
- No latency
- Supports 3.5mm embedded & de-embedded audio
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
WolfPack™ 10x18 HDMI Matrix Switcher Chassis Configuration:
- 1 - 18-card in and 18-card out card cage
- 10 - 1-port HDMI input cards = 10 HDMI inputs
- 18 - 1-port HDMI output cards = 18 HDMI outputs
- 8 - additional input slots for future card expansion to 18-inputs
The WolfPack 10x18 HDMI Matrix Switch with Video Wall Processor manages many type of HDMI signals. These Modular HDMI Matrix Routers support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
These 10x18 HDMI Matrix Switch with Video Wall Processor Feature:
- 18 inputs and 18 outputs chassis
- Input Cards Supported:
-
- 10 - HDMI Receivers used at each TV
- Output Cards Supported:
-
- 18 - HDMI Receivers used at each TV
- HDCP 1.4 compliant
- Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
- Output HDMI cable distance: ~50 feet AWG24 HDMI 2.0 high speed cables
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for remote control via an automation control system
- Supports resolution exchanges with several resolutions can be chosen and used
- Hot-pluggable
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control (no remote control)
- Rack-mountable
The heart of the 10x18 HDMI Matrix Switch with Video Wall Processor are the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.
EDID Explained: The Modular HDMI Matrix Routers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
Why not buy this 10x18 HDMI Matrix Switch with Video Wall Processor today?
This WolfPack HDMI Matrix Switcher allows switching between inputs with a clean video cut and frame-to-frame switching with no glitches. The WolfPacks Modular HDMI Matrix Switcher advanced processor allows it to process live signals simultaneously which means it can seamlessly and instantly switch (~100ms or 0.1 second) between HDMI inputs and outputs. Most non-seamless HDMI matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
Separate Embedded Audio In and De-embedded Audio Out: The Seamless Matrix Switcher allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the HDMI input cards 3.5mm audio connector and then de-embedding the audio on the HDMI output cards 3.5mm audio.
Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the manual scaling up/down. Each HDMI card has a 8-pin DIP switch to select multiple resolution settings to conform to your HDMI source devices and the HDMI destination devices.
100ms Seamless HDMI Switching: This WolfPack™ 10x18 HDMI Matrix Switch with Video Wall delivers 100ms instantaneous video switching with full 1080p/60 video at each port. This high-performance engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input, the display outputs and scales the inputs for the best output resolution. It sets the output clock timing and uses a frame buffer to retain the input signal information for the fastest output.
The WolfPack Seamless 10x18 HDMI Matrix Switch with Video Wall allows switching between inputs with a clean video cut & frame-to-frame switching without any glitches. The HDMI Matrix Switchers advanced processor allows it to process live signals simultaneously which means it can seamlessly and instantly switch (~100ms or 0.1 second) between HDMI inputs & outputs. Most non-seamless HDMI matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
10x18 HDMI Matrix Switch over CAT6 with Video Wall Processor Specs:
- Modular Configuration: 18x18 input and output chassis
- Input cable distance: ~15 feet AWG24 HDMI 1.4 high speed cable
- Output cable distance: ~6 feet AWG28 HDMI 1.4 high speed cable
- Resolution support: 1080p/60, 1080p/30, 1080i, 720p, 480p and 480i
- Supported Input & Outputs Signals:
- HDMI and Display Port: up to 1080p at 60 Hz
- Control: Apps, WEB GUI, RS232 and front buttons
- Power Supply: 100 – 240VAC, 50-60Hz
- Power Consumption: 50W 70W
- Operating Temperature : -10℃ to 50℃
- Storage Temperature :-25℃ to 55℃
Why not buy this 10x18 HDMI Matrix Switch with Video Wall Processor today?
User Manuals and Other Documents
Why not buy this 10x18 HDMI Matrix Switch with Video Wall Processor today?
Control
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:- Remote Keypad for WolfPack Matrix Systems
- Free 15-Button Remote Control
- Free Windows PC Control Software
- Free iPad App (iOS)
- Free iPhone App (iOS)
- Free iPod App (iOS)
- Free Android Tablet App
- Free Android Phone App
- Free Samsung Galaxy Tablet App
- Free Samsung Galaxy Phone App
- Free Amazon Fire Tablet App
- Free Web GUI from any browser is standard
- Front panel push-buttons are standard
- Optional 7-inch Color Touch Screen for Setup & Control
- RS232 ports are standard on select models
- TCPIP ports are standard on select models
- Sports Bar DirecTV™ Control System (Call)
- Free One-Way Control4 Drivers
- Optional $99 2-Way Control4 Drivers
- Optional $99 URC Drivers
- Optional $99 Elan Drivers
- Optional $129 Crestron Modules
- Optional $99 RTI Drivers
- Optional Harmony Remote Control Codes
Control Drivers
- Control4 Drivers
- Elan Drivers
- RTI Drivers
- URC Drivers
- Crestron Modules
- We Need AMX Drivers
- We Need Extron Drivers
- We Need Savant Drivers
DirecTV Controller
Apps
These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
- AMX™
- Control4™
- Creston™
- RTI™
- DTVGameControl™
- Elan g!™
- Media Switcher™
- OnControls™
- Savant™
- SimpleControl™
- SwitchItUp™
- SAVI Control™
- URC Control™
...we have created a simple and very easy to use RS232 script to write your own drivers.
EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be 8x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows an "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.
How to use the info:
END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
- Call us for a quote
- Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.
Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants
Why not buy this 10x18 HDMI Matrix Switch with Video Wall Processor today?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
Mix-n-Match combinations:
Non-HDCP source to a HDCP compliant TV
HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
Q: What are the dimensions of the chassis?
A: 18x18: 4U - 482x390x178mm - 18.97x15.35x7.01 inches (L/W/H)
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
Why not buy this 10x18 HDMI Matrix Switch with Video Wall Processor today?
HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.
If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at support@hdtvsupply.com
